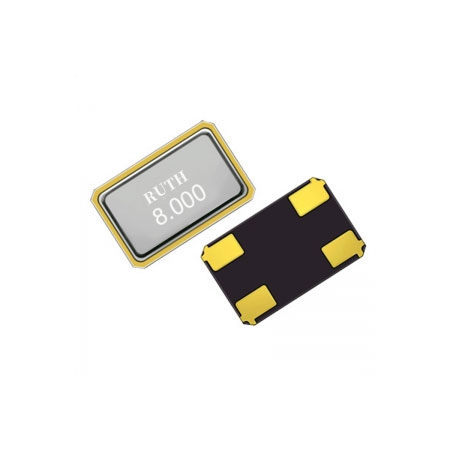

Home page ? Product ? Quartz crystal resonator (SMD) ? MIni5032
*High precision, high reliability, wide temperature range, low jitter, low power consumption
*Frequency: Wide temperature range、Wide frequency8MHz-120MHZ
*Base stations, radar detection, remote control equipment, and industrial equipment
*conform toRoHS lead-free
? Specifications
|
Type |
SMD 7050 /5032/3225/2520/2016/1210 |
|
頻率范圍 |
Frequency Range |
88.00~120.000MHz 888 |
|
振動模式 |
Vibration Mode |
ATCUT,Fundamental |
|
調整頻差（ppm） |
Frequency Tolerance(at25℃) |
±10≈±50ppm |
|
溫度頻差（ppm） |
Frequency Stability Over Temperature Range |
See Table 1 |
|
儲存溫度（℃） |
Storage Temperature Range |
-40℃-+85℃ |
|
等效電阻（Ω） |
Equivalent Series Resistance |
See Table 2 |
|
靜態電容 (PF) |
Shunt Capacitance |
5.0pFMax |
|
負載電容（PF） |
Load Capacitance |
5-50pF or Series Resonance |
|
絕緣電阻 (??) |
Insulation Resistance |
≥500MΩ//DC100V ±10V |
|
激勵功率（μ W） |
Drive Level |
0.01uW-1000uW |
|
老化率（ppm/y） |
Aging |
±2ppm/year, ±3ppm/year, ±5ppm/year |
? Dimension(Unit:mm)
